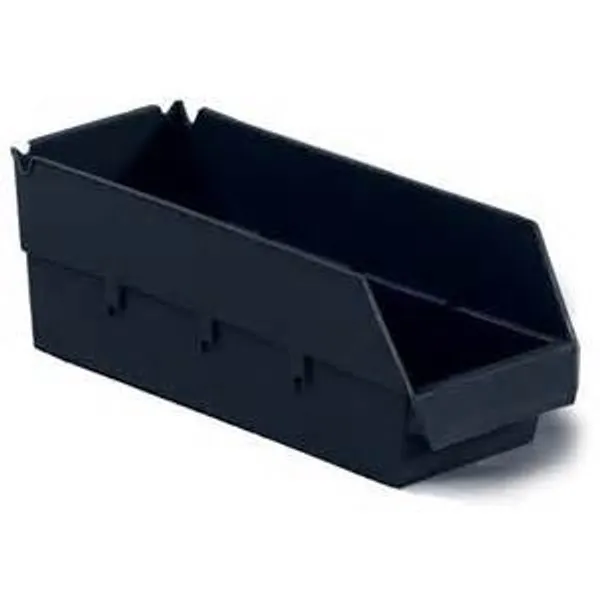

ESD Bins - Conductive Bins - Black -  12"L x 5.6"W x 4.0"H - LB-SB1204-6XL

ESD Safe Shelf bins are permanently molded in conductive material for use in assembly areas and workstations.

ESD or electro static discharge, refers to how quickly material will dissipate (charge moves through the product) an electrical charge. Material is rated at different levels for the "resistance" at which it will allow a charge to move through the material.  Conductive material allows the charge to move very fast and has a low resistance. Static dissipative material allows the charge to move quickly but slower than conductive material. An insulative product has no movement or a very high resistance.  If parts are sensitive to electrical charges they should be stored in a conductive container.

ESD TECHNICAL DATA
Conductive                 10∧3 - 10∧5 ohms   material has static control properties
Static Dissipative      10∧ 6 - 10∧10 ohms    material has static control properties
Insulative                  10∧11 - 10∧12 ohms   material has no static control

ESD BIN FEATURES
•  XL Conductive material
•  Accommodates up to 3 dividers
•  Optional full length divider locks into bin, creating two or three additional storage compartments
•  Raised hopper front and tall width dividers allow up to 35% more material storage than comparable bins
•  Large undercut label slot for both cardholders or adhesive labels
•  Bins nest when empty to save space
•  Built-in hang lock allows bin to tilt out for full part accessibility.
•  Hopper front optimizes part accessibility.

ESD BIN PRODUCT CODES        Outside Dimensions         Inside Dimensions        Carton
                                                  L   x   W   x   H               L    x   W   x   H        Quantity
12" ESD BINS
LB-SB1204-4XL                      12"     4.3"    4.0"         10.5"    3.3"     3.9"           48
LB-SB1204-6XL                      12"     5.6"    4.0"         10.5"    4.6"     3.9"           36
LB-SB1204-8XL                      12"     8.5"    4.0"         10.5"    7.5"     3.9 "          24

18" ESD BINS
LB-SB1804-4XL                     17.6"   4.3"    4.0"         16.4"    3.3"    3.9"            36
LB-SB1804-7XL                     17.6"   6.6"    4.0"         16.4"    5.8"    3.9"            24

Product Code: LB-SB1204-6XL   ESD Conductive Bins, Black, Outside Dimension: 12" x 5.6" x 4.0", 36/Case, Price Per Case

For more options, visit our main Totes and Bins section.

TO ORDER ESD BINS | CONDUCTIVE BINS
To order ESD bins or conductive bins, you can click above, email , or call customer service at (303)752-0076.

Shipping Instructions: The ESD bins can ship via UPS or FedEx. The order ships collect or prepay and add to the invoice. If shipping collect, add your freight account number in the “Comments Box” when checking out. Customer is responsible for the freight charge.

In addition to ESD bins we also offer a variety of other material handling products, including equipment covers, tote box carriers, and carts.
